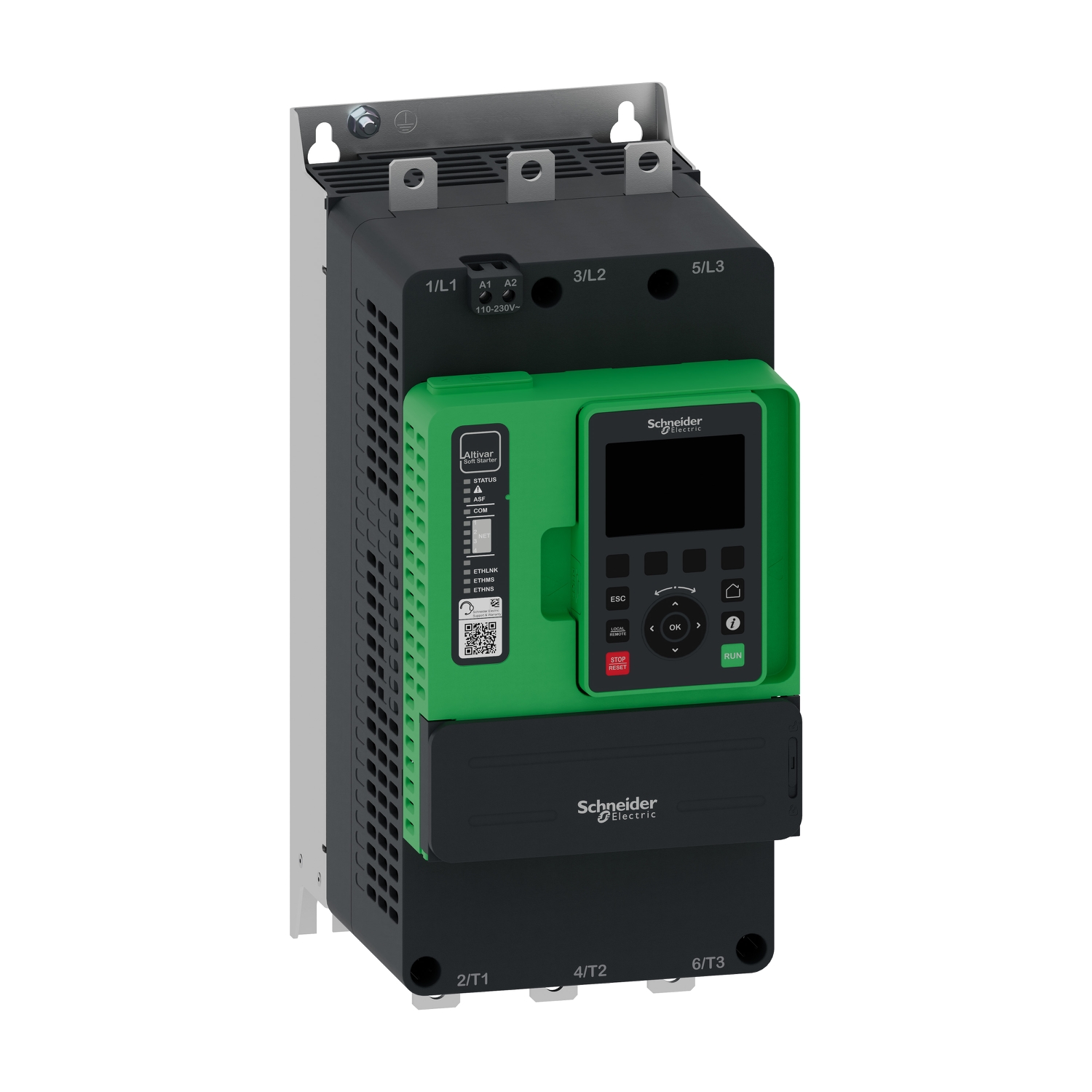

This soft starter belongs to the Altivar Soft Starter ATS490 range, which is intended to smoothly start and stop asynchronous motors supplied from 208 to 690V. With an operational rated current of 140A in normal duty, it supplies motor from 30 to 110 kW according to mains voltage. With an efficiency of 99.5%, dedicated application functions, and complete monitoring with data reporting, ATS490 enables advanced motor management. Certified cybersecurity, safe Torque Off, and condition monitoring features increase uptime, reduce operational expenditures, and simplify project design. ATS490 provides comprehensive system monitoring, including the motor, application, power and energy with an accuracy greater than 95%. ATS490 has a native Ethernet port for Modbus TCP or EtherNet/IP and a Modbus serial link. Dimensions are 160mm (width), 235mm (depth), 356mm (height) and it weighs 9.5kg. ATS490 uses plastic with more than 20% bio-based content, and aluminum is ASI-certified. Altivar Soft Starter ATS490 meets the requirements of applications such as pumps, fans, compressors, conveyors, mixers, cutters, grinders, crushers… It conforms to IEC/EN 60947-4-2 and has received CE, cULus, UKCA, RCM, CCC, KC, EAC and DNV certifications. Some accessories are available, like an IP65 remote mounting kit to mount the graphic display terminal on the enclosure door and communication modules to extend the connectivity to other protocols. The packaging uses recycled cardboard and lower single-use plastic. The ATS490 soft starters shall be mounted vertically inside an enclosure. The built-in and innovative features of ATS490 improve competitiveness, operational resilience, and equipment sustainability. ATS490 delivers excellence in mastering applications and costs, even for the most demanding requirements.
Industrial Automation and Control, Variable Speed Drives and Soft Starters, Soft Starters, Altivar Soft Starter ATS490
Schneider Soft Starter ATS490 140A 208-690VAC 75kW ATS490C14Y
ATS490C14Y
Availability:
11 Ready Stock
- Reduced overall cost of solutions (native and innovative functions)
- Reduced execution time (EcoStruxure solutions)
- Withstand high stress and avoid limiting event (Increased reliability by design)
- Simplify project design (certified cybersecurity and safe torque off functions)
Rp29.143.800 Rp41.634.000
11 Ready Stock
