This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 4 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 45mA/50mA at 5V DC via bus connector, 35mA/40mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Industrial Automation and Control, PLC, PAC and Dedicated Controllers, Distributed I/O, Modicon TM3, Analog I/Os

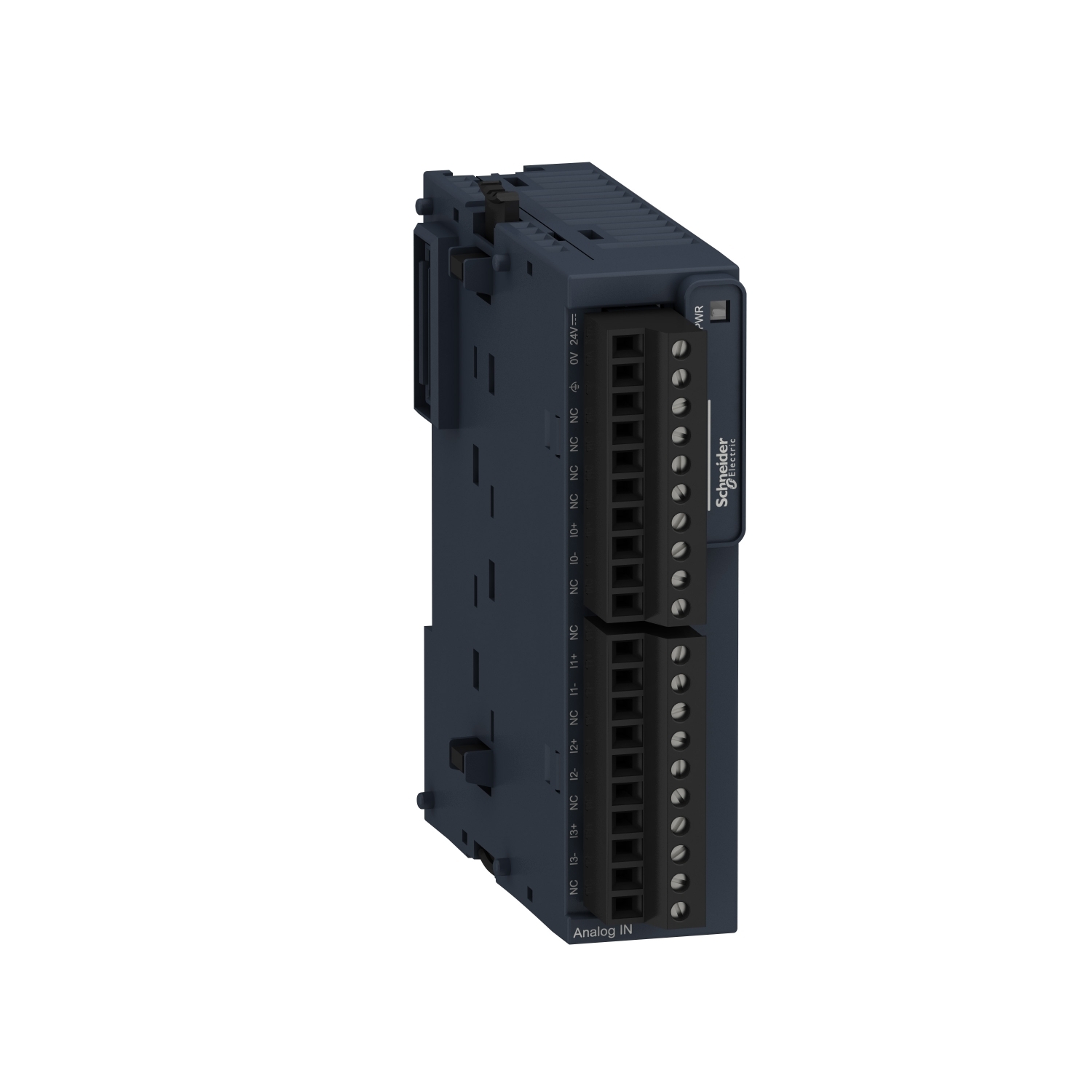

Schneider Expansion Module PLC Modicon TM3 Analog Input Module 24VDC – 8 Temperature Voltage Current Input Screw TM3TI4
TM3TI4
Availability:
20 Ready Stock
- Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Intuitive machine programming with EcoStruxure Machine Expert
- Modicon TM3 system allows to Modicon M2xx plc flexible and customizable I/O extension
Rp2.877.700 Rp4.111.000
20 Ready Stock
