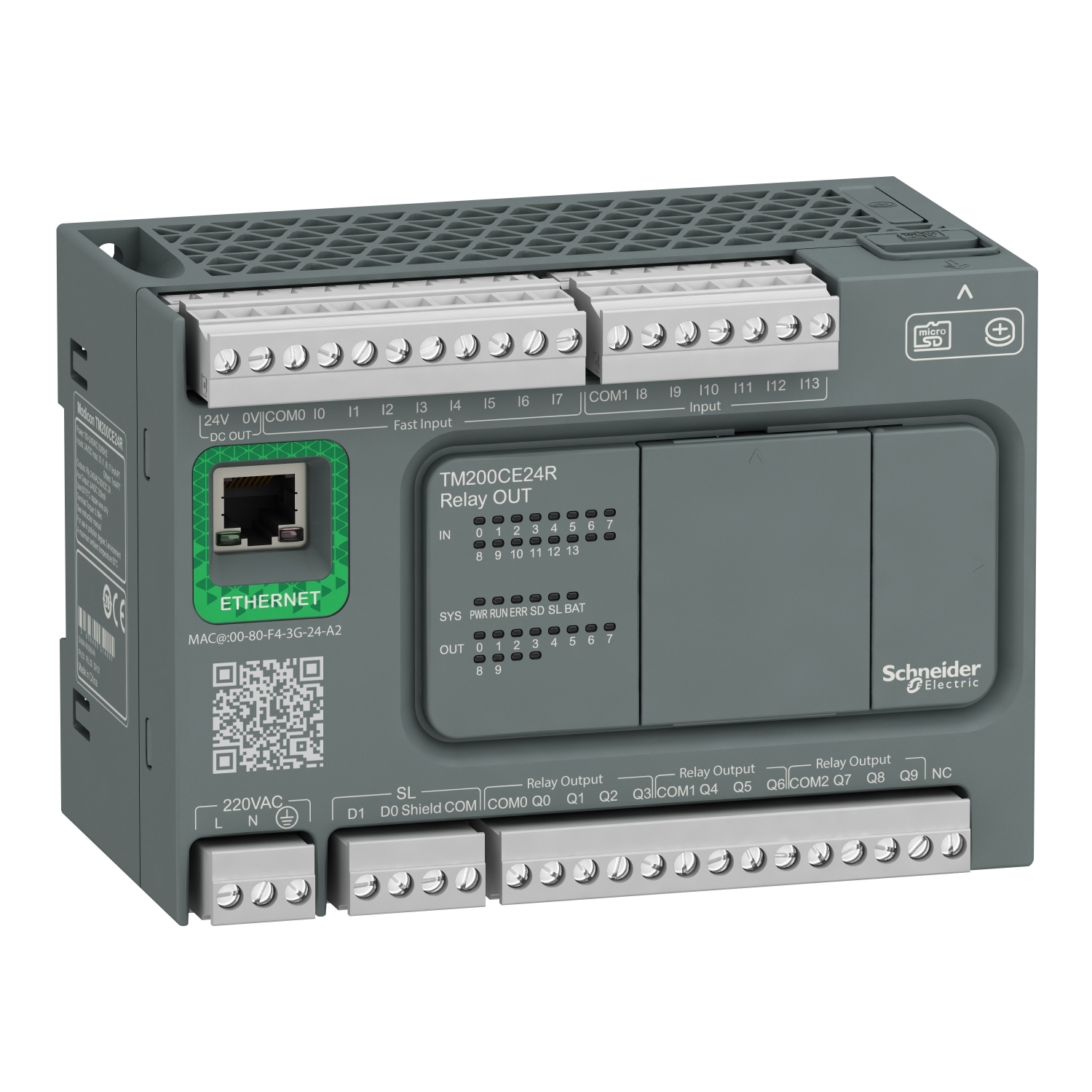

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 4 fast inputs, 4 high speed inputs, 6 regular inputs and 10 relay outputs, normally opened relay output. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, serial link 1 and RS485, serial link 2 and RS232/RS485, ethernet Modbus TCP/IP, and serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 130mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.413kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Industrial Automation and Control, PLC, PAC and Dedicated Controllers, PLC Programmable Log Controllers, PLC Modicon M200
Schneider PLC Easy Modicon Programmable Logic Controller M200 24 I/O 220VAC Relay Ethernet TM200CE24R
TM200CE24R
Availability:
9 Ready Stock
- Designed for simple machines
- Easy to test and debug thanks to the standard USport and removable terminal blocks
- Easy to access information by scanning the QRcode carved on the front of the controller
- Monitoring for up to 196 I/O and 2 axis motion control
Rp2.385.600 Rp3.408.000
9 Ready Stock
Documents
