| Linearity Error | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AQ1, AQ2: +/- 0.2 % for analog output |
|---|---|
| Maximum Switching Current | relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC |
| Method Of Access | |
| Minimum Switching Current | |
| Motor Power Hp |

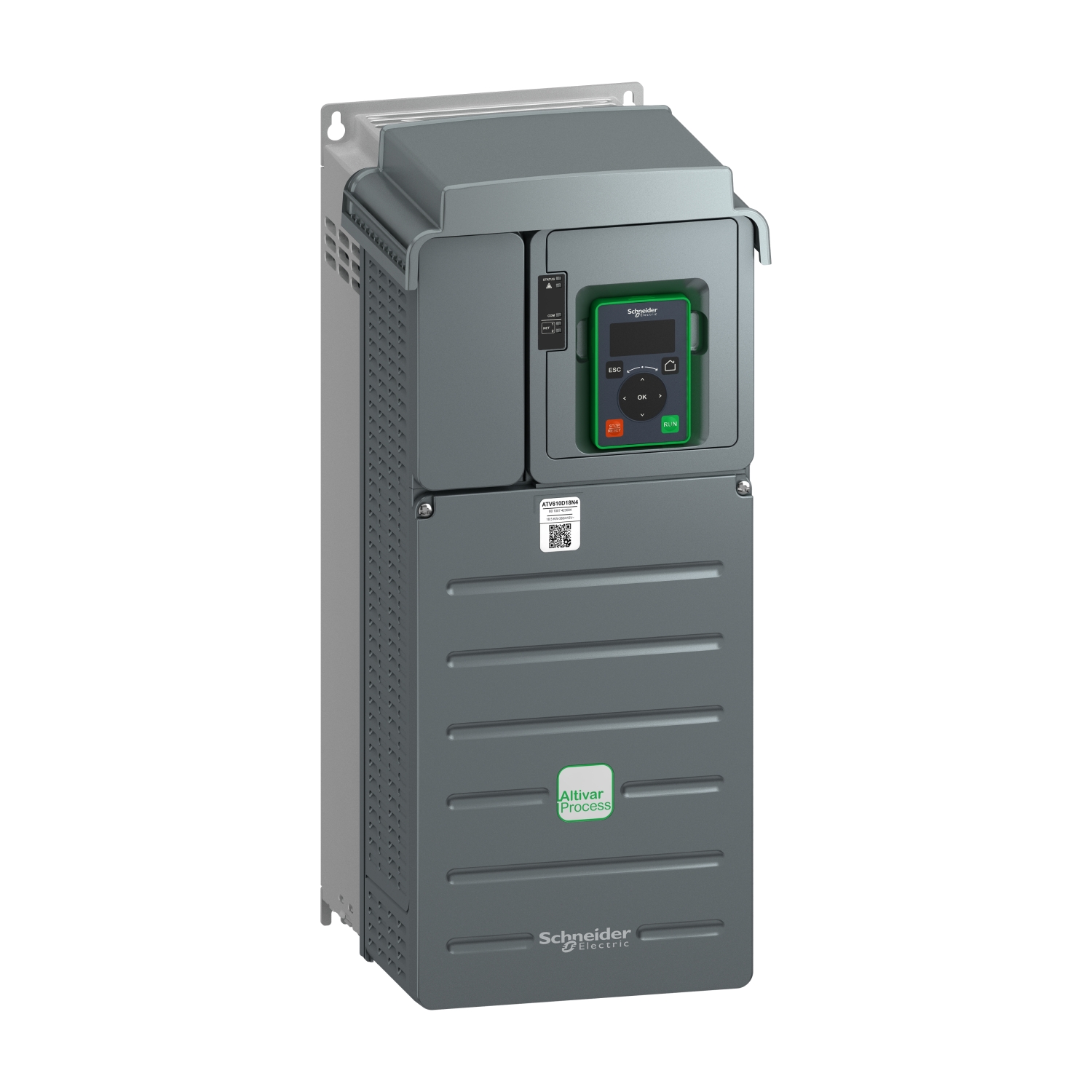

Schneider Altivar ATV610 Inverter VSD VFD 18kW 25HP 380-460VAC 3PH IP20 ATV610D18N4
9 Ready Stock
- Compact size
- Easy and quick installation
- User-friendly graphic display terminal
- Easy integration on an enclosure door
- Colored control circuit terminals to avoid misuse
Rp15.315.300 Rp23.562.000
9 Ready Stock
Documents
This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 15kW / 20hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 13.3kg and its dimensions are, 211mm wide, 495mm high, 232mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
Documents
