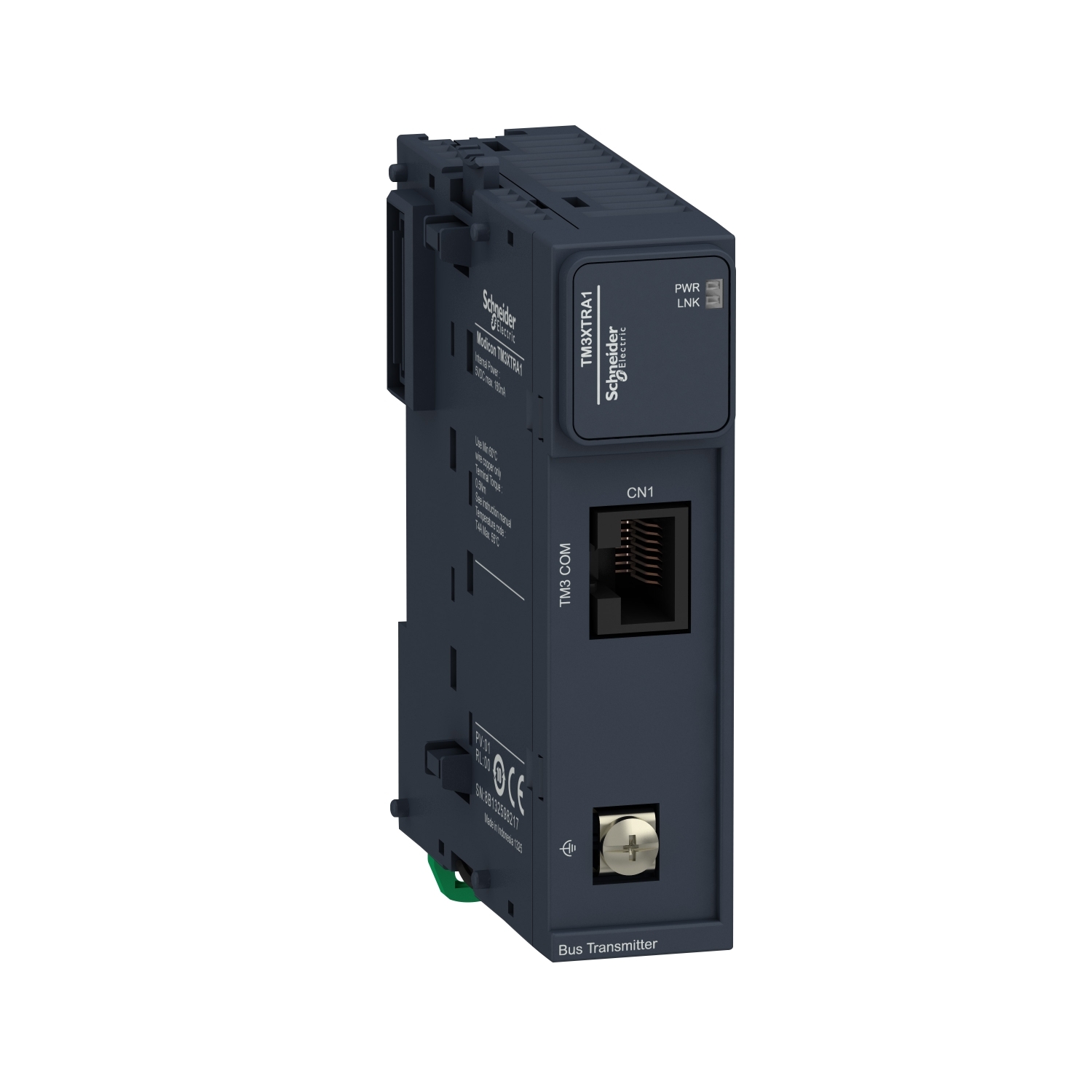

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote transmitter module is physically connected by a bus expansion cable. It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W. It is furnished with RJ45 connector for connecting the bus receiver, screw connector terminal for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.065kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Bus Expansion, Modicon TM3, Distributed I/O, PLC, PAC and Dedicated Controllers, Industrial Automation and Control
Schneider Expansion Module PLC Modicon TM3 Bus Expansion System – Remote Transmitter Module Transmisi Data TM3XTRA1
TM3XTRA1
Availability:
34 Ready Stock
- Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Intuitive machine programming with EcoStruxure Machine Expert
- Modicon TM3 system allows to Modicon M2xx plc flexible and customizable I/O extension
Rp1.254.400 Rp1.792.000
34 Ready Stock
Documents
