This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Industrial Automation and Control, PLC, PAC and Dedicated Controllers, Distributed I/O, Modicon TM3, Digital I/Os

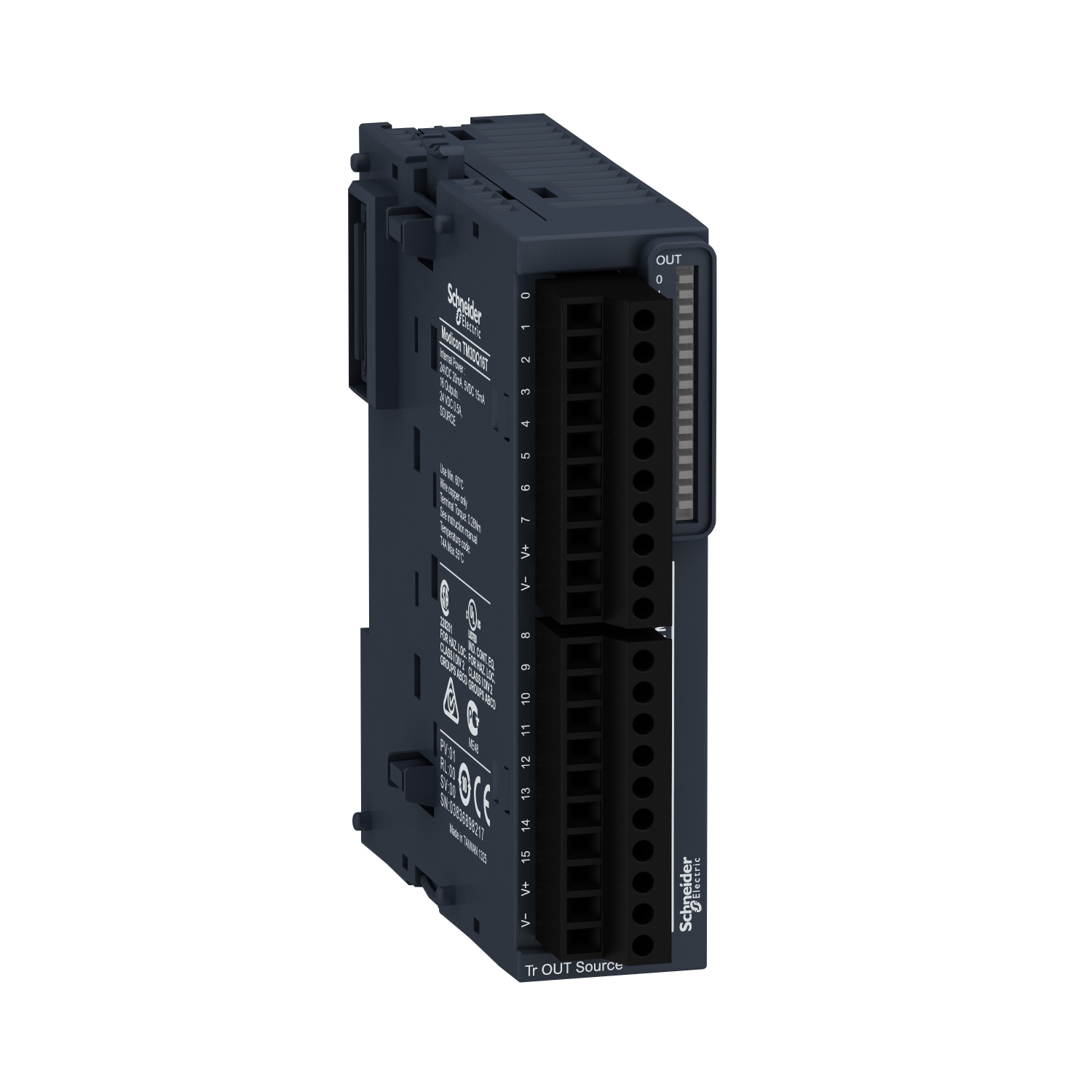

Schneider Expansion Module PLC Modicon TM3 Discrete Digital Output Module 24VDC – 16 Transistor Output Screw TM3DQ16T
TM3DQ16T
Availability:
15 Ready Stock
- Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Intuitive machine programming with EcoStruxure Machine Expert
- Modicon TM3 system allows to Modicon M2xx plc flexible and customizable I/O extension
Rp2.093.000 Rp2.990.000
15 Ready Stock
