This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 24 discrete inputs and 16 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 160mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.456kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Industrial Automation and Control, PLC, PAC and Dedicated Controllers, PLC Programmable Log Controllers, PLC Modicon M221

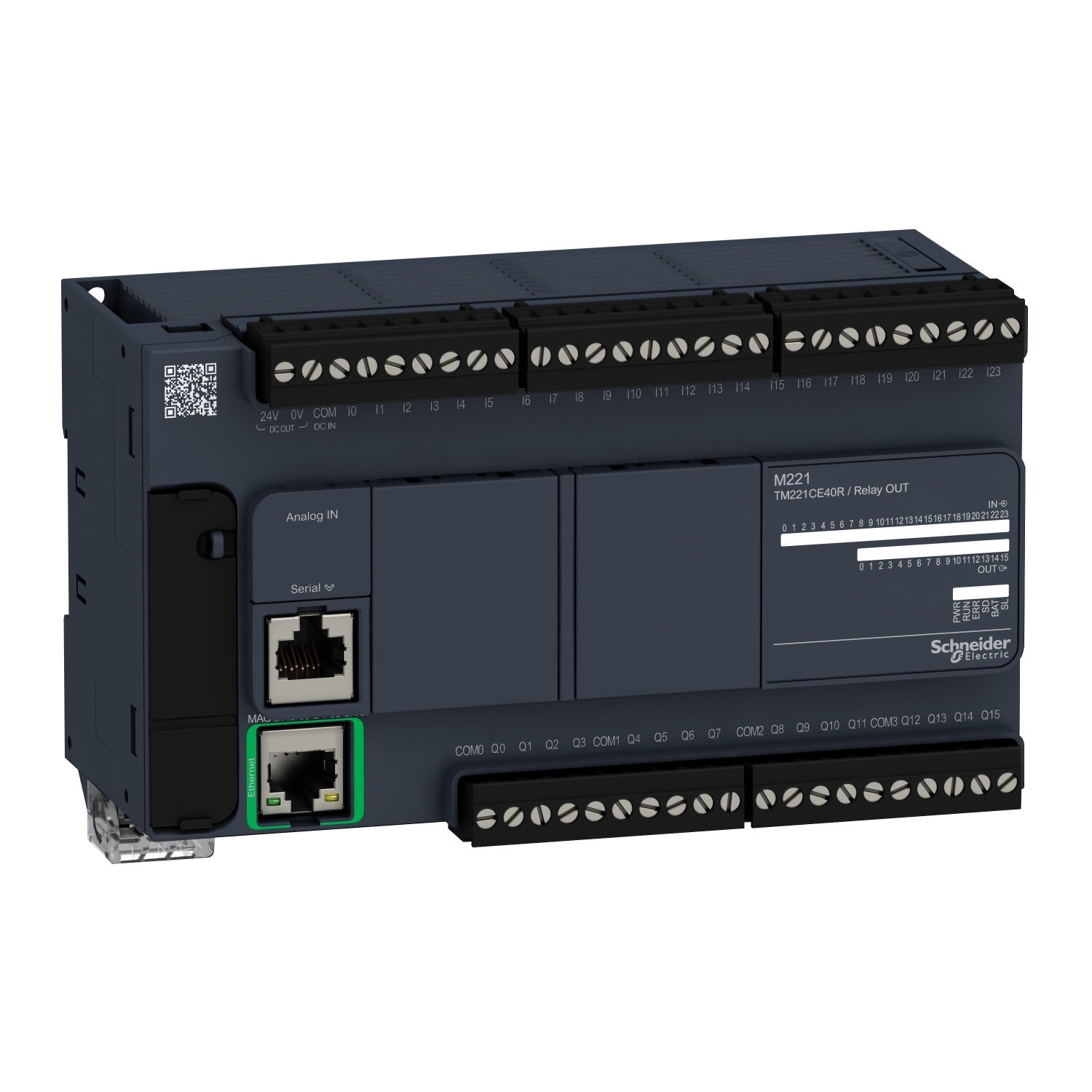

Schneider PLC Modicon Programmable Logic Controller M221 40 I/O 100-240VAC Relay Ethernet TM221CE40R
TM221CE40R
Availability:
18 Ready Stock
- SD card and USB port
- 4 analog inputs and a broad choice of I/Os
- Ethernet and serial line ports
- M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations
Rp5.630.100 Rp8.043.000
18 Ready Stock
